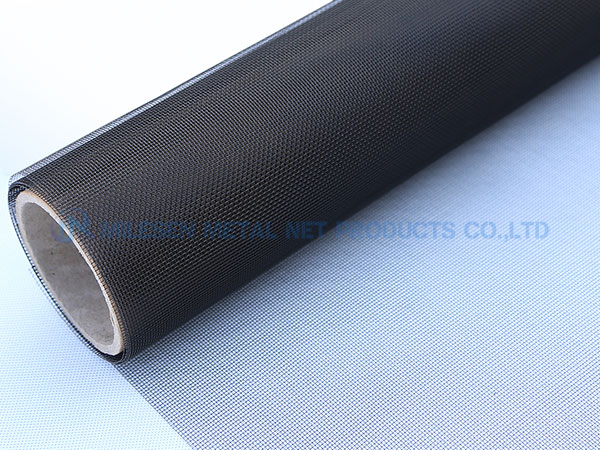

Epoxy Coated Wire Mesh

Epoxy Coated Wire Mesh as hydraulic filter and air filter supporting layer to backup filter paper or non woven cloth .which used to filter out the system of particulate debris and rubber impurities, to ensure the cleanliness of the hydraulic system and Air Filtration System.

Epoxy Coated Wire Mesh-Description

The epoxy coated wire mesh is primarily woven from average steel cable as well as covered with top notch epoxy powder with electrostatic spraying process to make this material immune to corrosion and also acid. Epoxy coated wire mesh is generally used as an assistance layer for purification, rather than galvanized cable mesh. It is ideal because of the stability and also economic situation of the structure. It is the almost all of the filter.

Basic material:

low carbon steel/ordinary steel wire/aluminum wire/stainless steel wire, epoxy powder


Dark gray and black epoxy coating is standard configuration, other colors can be customized, such as gray, white, blue, etc.

Epoxy Coated Wire Mesh-Features

  • Light weight

  • Epoxy coating makes it resistant to rust and rust

  • Stable internet structure, simple to pleated

  • High compatibility with different sorts of corrosive fluids

  • Resilient under heat and also high pressure

  • Easy to clean and also tidy

Epoxy Coated Wire Mesh-Application

  • Epoxy coated wire mesh is usually used in different filtration applications, as an assistance layer for hydraulic filters and also air filters, making certain good pleating results, giving maximum air flow and also peak filtering.

  • When epoxy coated wire mesh is utilized as epoxy coated filter cable mesh, as a hydraulic filter as well as air filter assistance layer to sustain filter paper or non-woven textile, used to strain bit pieces and also rubber impurities in the system to make certain the hydraulic system And also the cleansing of the air filter system.

  • Epoxy coated wire mesh can also be used as anti-insect thread for doors and windows. It is widely utilized to resist bugs such as flies, insects and bed insects in hotels, buildings, and homes.

For more information about the application of epoxy coated wire mesh, please click!

Epoxy Coated Wire Mesh-Specifications

The Main Specifications
MeshWire DiameterWidthLength
14x14BWG31/320.6 - 1.5 m100-1000LF
16x14BWG31/320.6 - 1.5 m100-1000LF
16x16BWG31/320.6 - 1.5 m100-1000LF
18x14BWG31/320.6 - 1.5 m100-1000LF
18x16BWG31/320.6 - 1.5 m100-1000LF
18x18BWG31/320.6 - 1.5 m100-1000LF
20x20BWG32/330.6 - 1.5 m100-1000LF
22x22BWG32/330.6 - 1.5 m100-1000LF
28x28BWG33/340.6 - 1.5 m100-1000LF
30x30BWG33/340.6 - 1.5 m100-1000LF

Item 2

Raw Material: galvanized steel, stainless steel or Aluminum, then coated with epoxy coatings.

Properties: light weight, flexible, easy to clean, good-looking, adumbral, privacy protection, safety protection, color can be customized .

Application: used in hotels, public buildings, civil residences for decorative and safety protection purpose;

Main Specifications
MeshWire diameterWidthLength
14x140.41mm0.72m - 1.5m30m
16x160.25mm0.72m - 1.5m30m
18X140.21mm0.72m - 1.5m30m

Epoxy coated mesh have such characteristics
1. Oil immersion corrosion resistance: It can be tested at different temperatures and times by various brands of hydraulic oil media all over the world, and the coating surface is unchanged. It is suitable for special hydraulic filter products of high temperature and high pressure.
2. Weatherproof corrosion: According to the ASTM B117-09 salt spray test standard. It can be tested in continuous 96 hours in the salty environment, and the mesh surface is unchanged. It is suitable for the air filters used in the harsh environment and outdoor environment.
3.Strong adhesion: It can pass the H grade pencil test, 1kg/50cm impact test, Scratch test, anti-fatigue test.
4. Excellent flexibility: Folding the mesh on the bar with radius of curvature 1mm, no breaks on the surface.
5.After slitting and cutting, the edge wire doesn't fall off.

Product packaging and also manufacturing:

The epoxy resin coated wire mesh can be rolled right into rolls or cut into strips. We collaborate with our consumers to give custom cut, installation-ready epoxy-coated grids to help simplify the building and construction routine.

Manufacturing procedure:

We set 40 sets plain steel mesh weaving looms in site, mesh opening accuracy, warp and weft wire straightness, mesh defects control, dimension control efficiently grantee raw mesh quality; Epoxy power has different brands, we normally choose anti oil power for industrial use and anti corrosion for civil use.Two equipments for epoxy coating adopted advance manufaccturing process ,the coating performance has been improved efficiently ,and coating capacity is 10000 square meter per day.

We welcome any of your enquiry!


Factory Address: 150m West of YinWang Road,Old Industrial Area,Anping, Hengshui, China, zip053600


E-mail: admin@milesen.cn
Mobile of Sales Director: +86-13903189134
Mobile of COO: +86-15512988999
Website: http://www.milesenwiremesh.com

We obtained Certificate of GB/T19001-2016 /ISO9001:2015;ISO Registered #:06718Q20463R0M and some customized certificates like stainless steel wire mesh salt spray test and Rohs Directive Test Reports,White House Micron Test Report,MSDS Certificate; etc.
