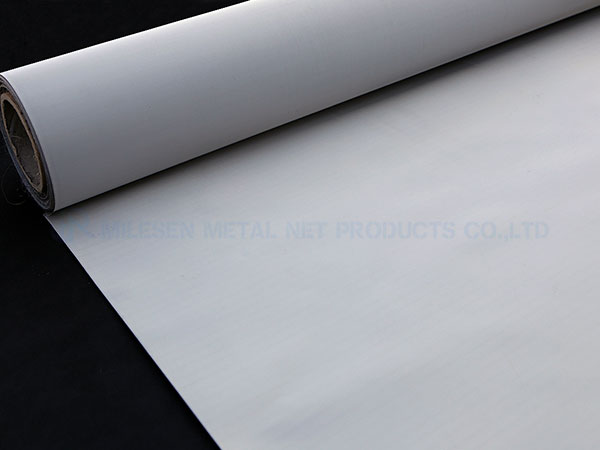

Dutch weave mesh product information
The dutch weave mesh is formed by weaving a limited number of warp threads to closely weave the largest number of weft threads together, resulting in a cloth that does not have holes that are easy to see. Dutch weave mesh is strong, stable, easy to clean and has a high flow rate, suitable for high-pressure liquid/solid separation.
Types of dutch weave mesh
Dutch weave mesh is divided into ordinary plain dutch weave mesh and twill dutch weave mesh, the difference is as follows.
Plain Dutch Weave Mesh Pattern:
In a plain dutch weave mesh the diameter of the warp wire is larger than the weft. The mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean and with a good flow rate suitable for high-pressure liquid / solid separation.
The advantages of plain dutch weave mesh over plain weave mesh
Higher mechanical stability.
A finer opening can improve filtration efficiency and quality.
Thicker wires have higher tensile strength.
Twill Dutch Weave Mesh Pattern:
Twill dutch weave mesh is produced with the weft wires packed together in the same principle as Plain Dutch Weave but with double the number of weft wires woven in an over two, under two pattern. The weft wires overlie each other creating a sinuous path of filtration. The cloth is very robust with a smooth surface and the finer weft wires and smaller pore sizes provide excellent flow characteristics. The finest filtration rates are obtained with this type of weave.
Manufactured as a Reverse Plain Dutch Weave in a twill pattern, which reduces the deformation of the warp wire, this cloth is very stable and particularly strong in the warp direction with a high flow rate.
Advantages of twill dutch weave mesh over twill weave mesh
Better filtering performance.
Higher tensile strength.
It can be used to filter ultra-fine products.
More stable structure.
Dutch weave mesh application
Dutch woven wire mesh is mainly used for filtration. It provides excellent filtering capabilities for a wide range of applications.
Petrochemical.
Pharmaceuticals.
Mining industry.
Waste water.
Special characteristics:
High Tensile warp wire configurations, a part of Auto Screen Changers used in the plastic extrusion industries.
High Tensile Warp AISI 304 wire for Auto-Screen changers used in the Poly Extrusion Industry. The AISI 304 Warp Wire's Tensile is 1300Mpa-1600Mpa.
High Tensile Warp Copper Coated Carbon Steel wire for Auto-Screen Changers used in Plastic and Rubber Extrusion industry. The Copper coated Carbon Steel Warp wire's tensile is 1500Mpa -2000Mpa.
Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
Specification of plain dutch weave mesh
Plain Dutch Weave Spec. | |||||
Warp Count | Weft Count | Warp Wire (mm) | Weft Wire (mm) | Norminal (micron) | Absolute Range (micron) |
8 | 85 | 0.43mm | 0.32mm | 250 | 225-260 |
12 | 64 | 0.58mm | 0.4mm | 300 | 260-280 |
12 | 72 | 0.4mm | 0.38mm | 300 | 260-280 |
16 | 80 | 0.43mm | 0.34mm | 200 | 210-230 |
24 | 110 | 0.355mm | 0.25mm | 120 | 112-125 |
30 | 150 | 0.23mm | 0.18mm | 90 | 90-105 |
40 | 200 | 0.18mm | 0.14mm | 70 | 70-75 |
50 | 250 | 0.14mm | 0.114mm | 60 | 56-63 |
80 | 400 | 0.125mm | 0.071mm | 40 | 40-45 |
Specification of twill dutch weave mesh
Twill Dutch Weave Spec. | |||||
Warp Count | Weft Count | Warp Wire (mm) | Weft Wire (mm) | Norminal (micron) | Absolute Range (micron) |
80 | 700 | 0.1 | 0.077 | 25 | 34-36 |
165 | 800 | 0.1 | 0.077 | 15 | 24-28 |
165 | 1400 | 0.068 | 0.04 | 10 | 15-18 |
200 | 1400 | 0.068 | 0.04 | 5 | 11-13 |
325 | 2300 | 0.036 | 0.025 | 2 | 7-8 |
Specification of reverse dutch weave mesh
Popular Sizes of Continuous Belts Filter (Reverse Dutch Weave) | |||||
Warp Count | Weft Count | Wre Dia(mm) | Filtration Data(micron) | Wdth(mm) | Length(mm) |
48 | 10 | 0.5x0.5 | 400 | 40-210 | 10 or 20 |
63 | 18 | 0.4x0.6 | 220 | 40-210 | 10 or 20 |
73 | 15 | 0.45x0.55 | 250 | 40-210 | 10 or 20 |
100 | 16 | 0.35x0.45 | 190 | 40-210 | 10 or 20 |
107 | 20 | 0.24x0.60 | 210 | 40-210 | 10 or 20 |
120 | 16 | 0.35x0.45 | 180 | 40-210 | 10 or 20 |
132 | 17 | 0.32x0.45 | 170 | 40-210 | 10 or 20 |
152 | 24 | 0.27x0.40 | 160 | 40-210 | 10 or 20 |
160 | 17 | 0.27x0.45 | 160 | 40-210 | 10 or 20 |
170 | 18 | 0.27x0.45 | 160 | 40-210 | 10 or 20 |
171 | 46 | 0.15x0.30 | 130 | 40-210 | 10 or 20 |
180 | 20 | 0.27x0.45 | 170 | 40-210 | 10 or 20 |
200 | 40 | 0.17x0.27 | 120 | 40-210 | 10 or 20 |
240 | 40 | 0.15x0.25 | 70 | 40-210 | 10 or 20 |
260 | 40 | 0.15x0.27 | 55 | 40-210 | 10 or 20 |
290 | 76 | 0.09x0.19 | 40 | 40-210 | 10 or 20 |
300 | 40 | 0.15x0.25 | 50 | 40-210 | 10 or 20 |
Dutch weave mesh manufacturer
Milesen Steel Internet Products Co., Ltd as a professional dutch weave mesh manufacturer produces a wide range of custom dutch weave mesh to meet the filtration needs of our customers. Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and wastewater treatment industries.
