Wire mesh is widely used in industries such as HVAC filtration, construction, industrial protection, and architectural design. Among the many available options, black epoxy coated wire mesh and galvanized wire mesh are two of the most commonly selected materials due to their durability and corrosion resistance.
Although both types of mesh provide reliable performance, they differ in coating technology, corrosion resistance, appearance, and application suitability. Understanding the differences between these materials helps engineers, contractors, and equipment manufacturers choose the most appropriate mesh for their projects.
Manufacturers such as Anping Milesen Metal Net Products Co., Ltd. supply both epoxy coated and galvanized wire mesh solutions for industrial and commercial applications worldwide.

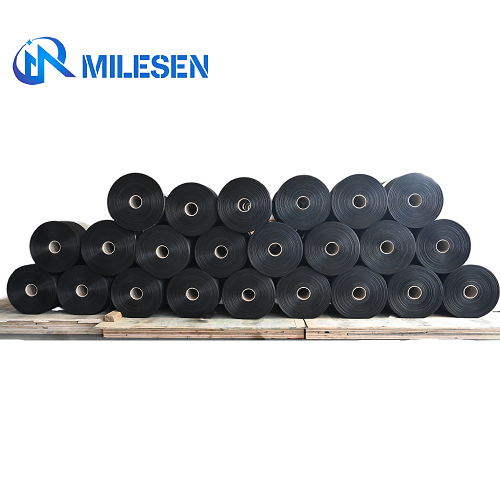

Black epoxy coated wire mesh is produced by applying an electrostatic epoxy powder coating to metal wire mesh, typically made from stainless steel or low-carbon steel. The coated mesh is then heated in a curing oven, where the powder melts and forms a uniform protective layer bonded to the wire surface.
The result is a mesh structure with enhanced corrosion resistance, a smooth surface finish, and improved durability.
Key characteristics include:
Strong epoxy coating adhesion
Smooth black protective surface
Excellent corrosion resistance
Long service life in humid environments
Attractive appearance for architectural use
Black epoxy coated mesh is particularly popular in HVAC air filters, insect screens, and industrial filtration systems.
Galvanized wire mesh is manufactured by coating steel wire with a layer of zinc through either hot-dip galvanizing or electro-galvanizing. The zinc layer acts as a sacrificial barrier that protects the underlying steel from rust and corrosion.
Two common types include:
Hot-Dip Galvanized Mesh – Steel mesh dipped in molten zinc, producing a thick and durable coating.
Electro-Galvanized Mesh – Zinc applied through electroplating, creating a thinner but smoother coating.
Galvanized mesh is widely used in construction, fencing, and agricultural applications due to its cost efficiency and protective zinc layer.
The following table highlights the key differences between these two types of wire mesh.
| Feature | Black Epoxy Coated Wire Mesh | Galvanized Wire Mesh |
|---|---|---|
| Coating Type | Electrostatic epoxy powder coating | Zinc metal coating |
| Surface Appearance | Smooth matte black finish | Metallic silver finish |
| Corrosion Resistance | Excellent chemical and moisture resistance | Good corrosion protection |
| Coating Thickness | Typically 60–120 μm | 10–50 μm depending on galvanizing method |
| Durability | High resistance to scratching and peeling | Zinc coating may wear over time |
| Maintenance | Minimal maintenance required | May require replacement after long exposure |
| Cost | Moderate to high | Economical |
| Typical Applications | Air filtration, architectural mesh, window screens | Construction, fencing, agriculture |
This comparison demonstrates that both materials have advantages depending on the environment and application.
One of the most important factors when choosing wire mesh is corrosion resistance.
The epoxy coating forms a continuous protective layer that blocks moisture, chemicals, and pollutants from reaching the metal surface. This makes it highly suitable for:
Indoor industrial environments
HVAC air filtration systems
Humid or coastal environments
Chemical processing facilities
Galvanized mesh relies on a zinc coating to protect the steel substrate. Zinc gradually oxidizes over time, protecting the steel beneath it.
It performs well in:
Outdoor fencing applications
Agricultural environments
Construction reinforcement
Temporary protective structures
However, in highly corrosive environments, the zinc layer may eventually wear away.
In architectural and interior applications, the appearance of wire mesh can be an important factor.
Uniform black finish
Smooth decorative surface
Suitable for modern architectural designs
Because of its aesthetic appeal, epoxy coated mesh is often used in decorative panels, ventilation grilles, and interior design elements.
Metallic silver surface
Industrial appearance
Typically used for functional applications rather than decorative ones
Black epoxy coated mesh is widely used in industries requiring durability, corrosion resistance, and a clean appearance.
Common uses include:
HVAC air filter support mesh
Window insect screens
Ventilation systems
Industrial filtration equipment
Decorative architectural mesh panels
The smooth epoxy coating also helps prevent dust accumulation and improves airflow efficiency in filtration systems.
Galvanized mesh is known for its affordability and reliable corrosion resistance in outdoor environments.
Typical applications include:
Construction reinforcement mesh
Farm fencing and animal enclosures
Garden protection mesh
Industrial safety barriers
Storage cages and partitions
Because of its lower cost, galvanized mesh is often selected for large-scale infrastructure projects.
Selecting between black epoxy coated wire mesh and galvanized mesh depends on several project factors.
For environments exposed to moisture or chemicals, epoxy coated mesh provides stronger corrosion resistance.
Galvanized mesh is generally more economical and suitable for projects with strict cost limitations.
Black epoxy coated mesh offers a more refined appearance, making it ideal for architectural applications.
Filtration systems and ventilation equipment often require epoxy coated mesh, while construction and fencing applications commonly use galvanized mesh.
Both materials have advantages. Epoxy coated mesh provides superior corrosion resistance and appearance, while galvanized mesh offers a cost-effective solution for outdoor applications.
Yes. Epoxy coated mesh can be used outdoors and performs well in humid environments, especially when combined with stainless steel substrates.
The most common color is black, but manufacturers can also produce custom colors depending on project requirements.
Black epoxy coated wire mesh is widely used in HVAC air filters because it provides corrosion resistance and smooth airflow support.
Yes. Manufacturers can customize mesh opening size, wire diameter, coating thickness, and roll dimensions according to customer requirements.
Both black epoxy coated wire mesh and galvanized wire mesh provide reliable solutions for industrial, architectural, and construction applications. While galvanized mesh offers a cost-effective protective zinc coating, epoxy coated mesh provides enhanced corrosion resistance, a smoother surface finish, and improved durability in demanding environments.
Choosing the appropriate mesh type depends on factors such as environmental exposure, application requirements, and design preferences.
Manufacturers such as Anping Milesen Metal Net Products Co., Ltd. offer a wide range of wire mesh solutions, including epoxy coated mesh and galvanized mesh, with customizable specifications suitable for various industrial and commercial projects.
