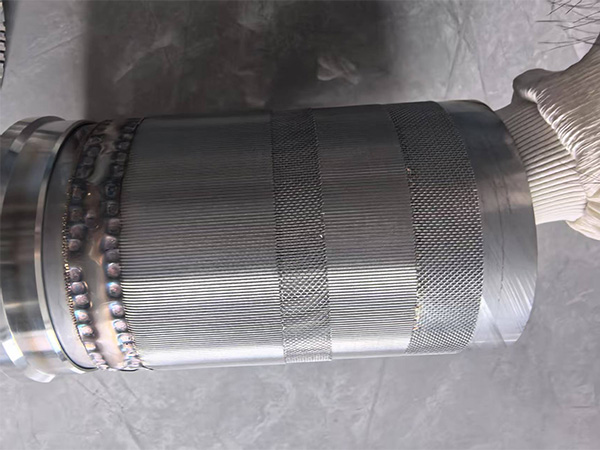

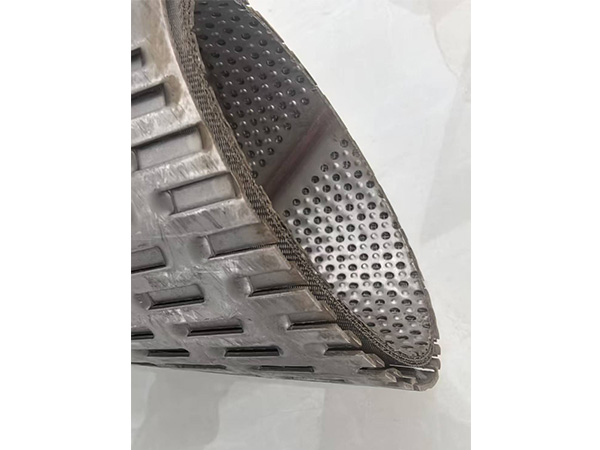

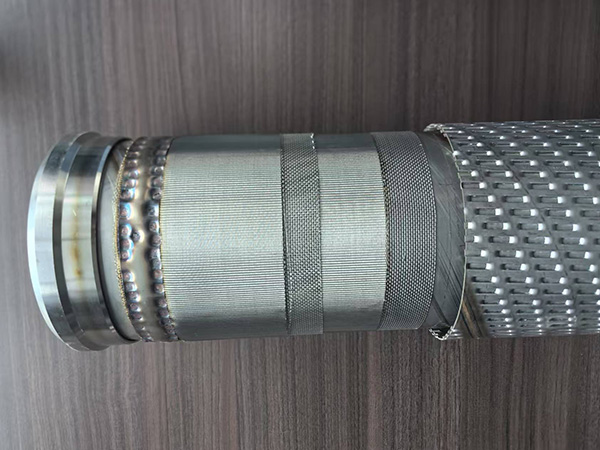

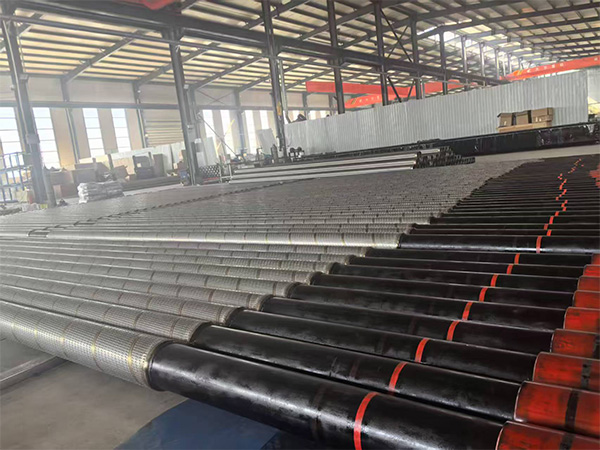

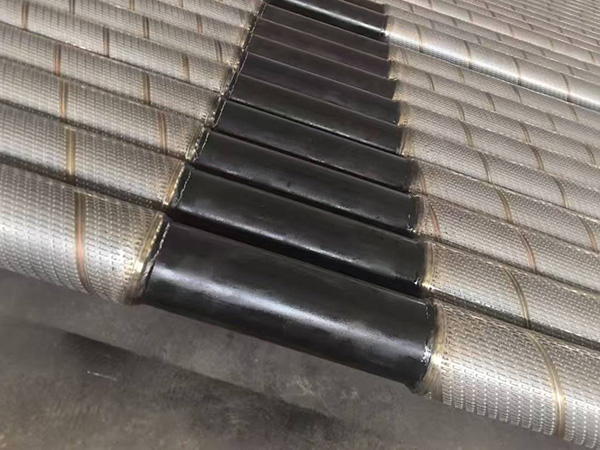

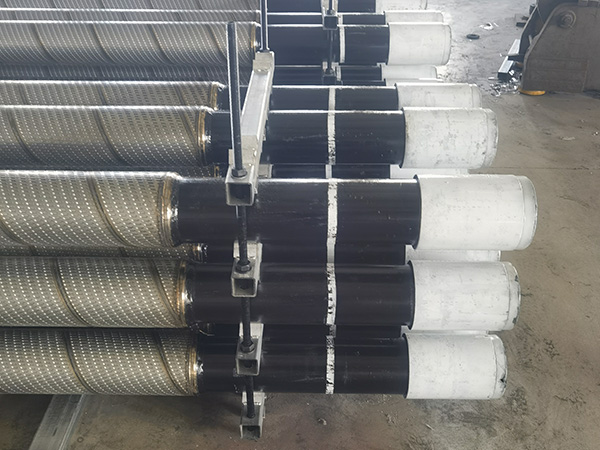

The PMC Screen consists of the APl casing or tubing,Inner protect shroud,composite filter mantle stainlesssteel outside protective shroud .Seven lays Precise Micropore Composite Screens consist of drilled hole basepipe, inner protect shroud, plain woven mesh, Dutch cloth filter Mesh, Plain woven mesh, Dutch cloth and Outside protect Shroud. the holes on outside protect Shroud could be round hole or bridge slot,also couldbe customized by the user.
Features Of PMC Screen
1. Two layers of Stainless dutch filter cloth by which have a high reliability and collapse resistance in sand control.
2. Large area flow and high produce capacity.
3. Small outside diameter, light weight, easy to push the pipe in alongthe Horizontal Direction.
4. Anti-acid and alkaline, anti-high temperature,longer working life.
5. Noincreasing of the sand content even if the screen OD deformed from 40% to 75%.
6. Simple construction and easy to operate. Application of PMC screen PMC screen is mainly used for sand control in Verticaland Horizontal Wells.
| Base pipe | Filtering sleeve | |||
O.D. | Nominal size | O.D. | Filtering precision | Length |
23/8 | 60.3 | 75 | 60-350 | 1.2~5 |
2 7/8 | 73 | 90 | 60~350 | 1.2~5 |
3 1/2 | 89 | 108 | 60~350 | 1.2~5 |
4 | 101.6 | 122 | 60~350 | 1.2~5 |
4 1/2 | 114.3 | 134 | 60~350 | 1.2~5 |
5 | 127 | 148 | 60~350 | 1.2~5 |
5 1/2 | 139.7 | 160 | 60~350 | 1.2~5 |
6 5/8 | 168.3 | 190 | 60~350 | 1.2~5 |
7 | 177.8 | 198 | 60~350 | 1.2~5 |
Precise Punched Slot Screen

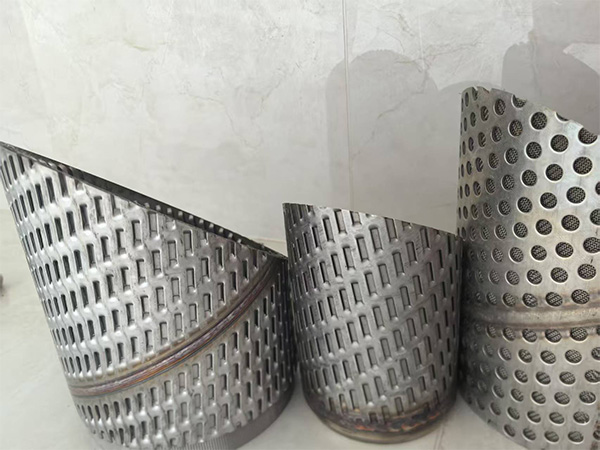

PPS screen is a proven screen technology with high performance forsand control and is an upgraded technological alternative forslotted linerand wire-wrapped screen.Itis also suitable for coarse sandstone formations and open hole horizontal wells.
Features
Composed of base pipe,high-density slotted shroud and stainless steel end supporting rings Effective open area is approximately 3-5 times larger than slotted liner
High self-cleaning capability from side flow slots(90 degree inflow surface)
Highermechanical strength with perforated base pipe compared to slotted liner Optimal anti-corrosive performance from high quality stainless steel shroud
Small screen O.D.,safe and easy to run in open hole horizontal well
