Woven vs welded wire mesh appears in the same supplier catalog pages, listed side by side with similar wire gauges and, depending on grade and opening size, overlapping price ranges. For buyers who aren't yet fluent in mesh construction, that similarity on paper makes the decision harder than it needs to be. The reality is that these two products behave fundamentally differently under load, in filtration systems, and in outdoor environments. Choosing the wrong type can waste budget and create performance problems that are costly to fix after installation.
The woven vs welded wire mesh decision hinges on how each type is built, what mechanical behavior your application demands, and what the environment will put the material through. At Milesen Anping Wire Mesh, we manufacture both types across multiple grades and specifications, which gives us a practical view of where each product belongs. By the end of this comparison, you'll know which type matches your job and which specs to bring to your supplier.

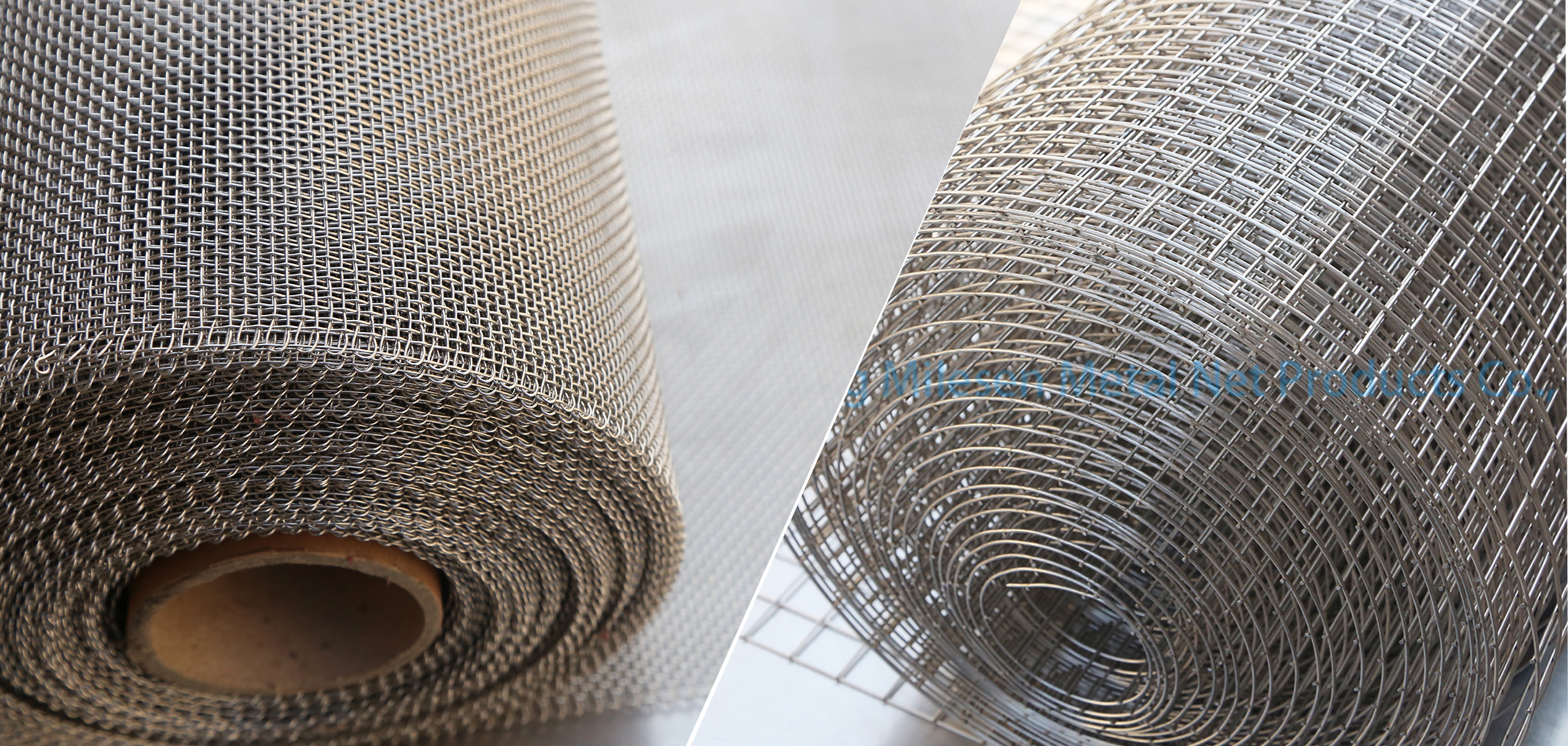

In woven wire mesh, individual wires run through a loom and interlace over and under each other in a repeating pattern, much like fabric. Crimped wire mesh takes this further: wires are first run through a crimping machine that pre-forms regular bends before weaving. Those bends lock the wires in position after weaving, improving stability without fusing anything at the intersections. Because no material is welded or removed at any crossing point, woven mesh retains flexibility across its full length.
The mechanical trade-off between these two types determines suitability for each use case. Neither is universally superior; each offers specific performance advantages that align with different applications and operating conditions.
Where welded mesh outperformsWelded mesh wins on panel-level rigidity and shape retention. The fused intersections prevent wire movement under load, which is why welded panels are the correct choice for concrete reinforcement, security caging, and structural partitions,where rigidity is the primary requirement.
Woven wire cloth maintains tighter aperture control, especially in fine-opening applications. Because wire diameter and mesh count can be precisely engineered, woven mesh delivers consistent micron-level filtration accuracy that welded construction cannot match. Aperureolerances as tight as are achievable in precision woven mesh, more in standard welded products, figures consistent with published supplier specifications for industrial wire cloth. Woven mesh also conforms to curved surfaces and can be formed around irregular shapes without cracking at intersections, a quality welded mesh cannot replicate.
Most buyers have a clear application in mind before they know which mesh type it calls for. The two broad categories below cover the majority of industrial and construction use cases, with the deciding factors for each.
Woven wire mesh is the industry standard for liquid and solid particle filtration, industrial sieving, and fine screening. Dutch weave Mesh, pushes filtration to extremely high mesh counts in specialist products, offerings reaching 2800 mesh for high-pressure liquid and solid separation. Wire cloth also serves screen printing, pharmaceutical filtration, and food-grade separation where consistent aperture and material traceability are non-negotiable.
Welded wire mesh panels are the right call for perimeter fencing, animal enclosures, concrete slab reinforcement, fan guards, and storage cage construction. Common opening sizes run from 6 mm × 6 mm up to 50 mm × 50 mm across standard catalog offerings, and the rigid flat panel format holds its shape without additional framing support in most structural applications. For concrete reinforcement in the US, the governing standard, which covers both plain and deformed welded wire reinforcement for concrete.
Mesh type selection is only half the decision. Material grade and surface protection determine whether the mesh lasts two years or twenty in its operating environment.
Galvanized coatings apply zinc over steel, which works well in dry to moderately humid environments. The zinc layer sacrifices itself to protect the base metal, but once it wears through or is scratched, the underlying steel is exposed and corrosion begins. PVC coatings add a polymer barrier over a galvanized core and can extend service life, but damaged coatings expose the base metal to the same corrosion risk. Stainless steel builds corrosion resistance into the alloy itself, making it the most reliable option in wet, ch1. woven wire cloth
emical, marine, or regulated-industry environments where coating integrity cannot be guaranteed long-term.
Galvanized welded mesh is cost-effective for general construction and agricultural fencing in mild climates. Stainless steel woven mesh, particularly 316L, is the correct call for food processing, pharmaceutical filtration, marine applications, and settings with sustained chemical exposure. Where elevated temperatures are a factor, grades like 310S or 321 are commonly specified, as their composition maintains structural integrity at operating temperatures that would compromise standard 304 over time.
Wire diameter , mesh opening size , weave or weld pattern, and material grade are the four variables a supplier needs to produce the correct mesh. For woven mesh, also define aperture tolerance and whether you need plain weave, twill weave, or Dutch weave construction. For welded mesh, specify panel size, grid pattern, and whether you need pre-galvanized or post-galvanized treatment. Leaving any of these open to supplier interpretation introduces variability that can compromise downstream processes.
Working with a single manufacturer that produces both woven and welded wire mesh across multiple grades may reduce the need to qualify separate suppliers, manage multiple documentation sets, and reconcile different lead-time schedules, provided that manufacturer meets your traceability and quality requirements. Milesen Anping Wire Mesh produces stainless steel woven mesh across a wide range of mesh counts, including Dutch weave in specialist configurations, along with welded panels in grades including 304 and 316L, and custom-fabricated components with mill certificates available on request. Whether your requirement is a filtration-grade Dutch weave or a structural welded panel, consolidating both product types through one factory relationship streamlines specification, ordering, and documentation.
The core decision logic is straightforward. Use woven wire mesh for precision filtration, fine screening, and any application requiring tight aperture control or the ability to conform to non-flat surfaces. Use welded wire mesh for structural rigidity, perimeter fencing, concrete reinforcement, and enclosure applications where the panel needs to hold its shape under load.
Material grade matters as much as mesh type. A 304 woven mesh and a 316L woven mesh may look identical on a drawing, but they perform differently in corrosive or regulated environments. Defining your four key specifications before approaching a supplier saves time and prevents costly mismatches after the order ships.
