Stainless Steel Woven Mesh

Stainless steel mesh is made of stainless steel wire through warp and weft woven. Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on. It has the characteristics of acid, alkali, high temperature and grind, etc., and is widely used in petroleum, chemical, automotive, new energy, food, medicine and other industries.

Availability:



Inquire

Product Description

Product description of stainless steel mesh

Stainless steel mesh is one of the most popular woven wire mesh with different mesh, wire diameter, and aperture diameter to have a variety of types and woven wire mesh products. Therefore, it is a versatile mesh product, mainly used for filtration and sieving of gases, liquids and solids, separation of media, etc.

Features

Resistant to acid, alkali, high temperature and abrasion, widely used in petroleum, chemical, automotive, new energy, food, pharmaceutical and other industries.

Weave types

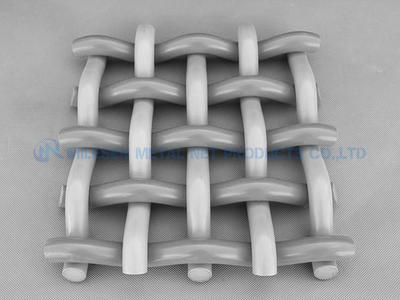

According to the opening type and woven type, the stainless steel mesh can be divided into square mesh(plain weave, twill weave), generally the wire diameter of warp and weft are the same, the mesh count of warp and weft are the same(rectangular mesh are not the same for warp and weft mesh count), weaving type can be divided into plain weave and twill weave.

Dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave).

Other specific applications are

Filters, sieves, separators, strainers, slurry screens, gas diffusion, sieving particles, vents, building and construction screens, craft paper, decorative screens, fan covers, filtering liquids and gases, fireplace screens, food drying, foundation ventilation screens, drain protection screens, high clarity screens, hydraulic filters, insect screens, lamp covers, oil filters, pest control, security, water-oil separation, etc.

Square Mesh specifications

Plain Weave Mesh (Normal Spec.)
Mesh count	Wire Dia		Width of Opening		Open area
Mesh count	Inches	mm	Inches	mm	%
1X1	0.157	4	0.84	21.4	71
2X2	0.118	2.5	0.38	10.2	64
3X3	0.079	2.0	0.25	6.4	58
4X4	0.063	1.6	0.187	4.75	56
4X4	0.047	1.19	0.203	5.16	65.9
5X5	0.055	1.4	0.14	3.68	52
6X6	0.047	1.2	0.12	3.03	51
8X8	0.043	1.1	0.08	2.08	42
10X10	0.039	1.0	0.06	1.54	36
10X10	0.020	0.51	0.08	2.03	64
12X12	0.023	0.584	0.06	1.52	51.8
12X12	0.02	0.508	0.63	1.6	57.2
14X14	0.023	0.584	0.048	1.22	45.2
14X14	0.020	0.508	0.51	1.3	51
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.020	0.508	0.0	0.76	36
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.0277	0.7	44.2
30X30	0.013	0.330	0.0277	0.70	37.1
30X30	0.012	0.305	0.0213	0.54	40.8
30X30	0.009	0.229	0.0243	0.62	53.1
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50×50	0.009	0.229	0.0110	0.28	30.3
50X50	0.008	0.203	0.012	0.31	36
60X60	0.0075	0.19	0.0092	0.23	30.5
60×60	0.007	0.178	0.0097	0.25	33.9
70X70	0.0065	0.165	0.0078	0.2	29.8
80×80	0.0065	0.165	0.0060	0.15	23.0
80X80	0.0055	0.14	0.007	0.18	31.4
90×90	0.005	0.127	0.0061	0.16	30.1
100×100	0.0045	0.114	0.0055	0.14	30.3
100×100	0.004	0.102	0.0060	0.15	36.0
100×100	0.0035	0.089	0.0065	0.17	42.3
110×110	0.0040	0.1016	0.0051	0.1295	30.7
120×120	0.0037	0.0940	0.0046	0.1168	30.7
150×150	0.0026	0.0060	0.0041	0.1041	37.4
160×160	0.0025	0.0635	0.0038	0.0965	36.4
180×180	.0023	0.0584	0.0033	0.0838	34.7
200X200	0.0021	0.05	0.0029	0.0737	35.49
250×250	0.0016	0.0406	0.0024	0.0610	36.0
270×270	0.0016	0.0406	0.0021	0.0533	32.2
300×300	0.0015	0.0381	0.0018	0.0457	29.7
325×325	0.0014	0.0356	0.0017	0.0432	30.0
400×400	0.0010	0.0254	0.0015	0.0370	36.0
500×500	0.0010	0.0254	0.0010	0.0254	25.0
635×635	0.0008	0.0203	0.0008	0.0203	25.0

Specification of Dutch Weave Mesh

Plain Dutch Weave Spec.
Weaving method	Mesh	Wire diameter		Norminal (micron)	Max Width（mm）
Weaving method	Mesh	Inches	mm	Norminal (micron)	Max Width（mm）
PDW	8×85	0.0140×0.0126	0.36×0.32	300-320	2000
PDW	12×64	0.0240×0.0165	0.61×0.42	260-280	2000
PDW	12×90	0.0178×0.0120	0.45×0.30	270-300	2000
PDW	14×88	0.0200×0.0130	0.51×0.33	255-275	2000
PDW	14×100	0.0160×0.0110	0.41×0.28	235-260	2000
PDW	16×80	0.0170×0.0135	0.43×0.34	210-230	2000
PDW	16×100	0.0157×0.0110	0.40×0.28	200-220	2000
PDW	16×120	0.0140×0.0094	0.36×0.24	180-198	2000
PDW	20×150	0.0098×0.0070	0.25×0.18	155-185	2000
PDW	24×110	0.0150×0.0100	0.38×0.25	115-128	2000
PDW	30×150	0.0090×0.0070	0.23×0.18	90-105	2000
PDW	30×280	0.0110×0.0037	0.28×0.09	100-110	2000
PDW	40×200	0.0070×0.0055	0.18×0.14	70-80	2000
PDW	40×340	0.0098×0.0030	0.25×0.08	78-84	2000
PDW	50×250	0.0055×0.0045	0.14×0.11	52-57	2000
PDW	50×280	0.0055×0.0040	0.14×0.10	50-55	2000
PDW	50×460	0.0078×0.0023	0.20×0.06	60-65	1300
PDW	60×500	0.0065×0.0020	0.17×0.05	48-54	1300
PDW	70×350	0.0050×0.0030	0.13×0.08	41-47	1300
PDW	70×620	0.0060×0.0018	0.15×0.05	45-48	1300
PDW	80×300	0.0050×0.0035	0.13×0.09	45-50	1300
PDW	80×400	0.0050×0.0028	0.13×0.07	40-45	1300
PDW	80×700	0.0040×0.0013	0.10×0.03	35-44	1300

Twill Dutch Weave Mesh (Normal Spec.)
Weaving method	Mesh	Wire diameter		Norminal (micron)	Max Width（mm）
Weaving method	Mesh	Inches	mm	Norminal (micron)	Max Width（mm）
TDW	20×250	0.0100×0.0080	0.254×0.200	100-118	2000
TDW	30×360	0.0100×0.0060	0.254×0.152	95-105	2000
TDW	40×560	0.0070×0.0040	0.178×0.102	75-83	2000
TDW	50×250	0.0100×0.0080	0.254×0.200	55-60	2000
TDW	80×700	0.0040×0.0030	0.102×0.076	35-38	1600
TDW	200×600	0.0024×0.0018	0.061×0.046	28-32	1600
TDW	165×800	0.0028×0.0020	0.071×0.051	25-39	1300
TDW	165×1400	0.0028×0.0016	0.071×0.041	16-18	1300
TDW	200×1400	0.0028×0.0016	0.071×0.041	12-14	1300
TDW	250×1400	0.0022×0.0016	0.056×0.041	11-13	1300
TDW	325×2300	0.0015×0.0010	0.038×0.025	8-9	1300
TDW	400×2800	0.0011×0.0008	0.028×0.020	4-5	1300
TDW	500×3600	0.0010×0.0006	0.025×0.014	2-3	1300

Popular Sizes of Continuous Belts Filter (Reverse Plain Dutch Weave)
Mesh	Wire diameter		Norminal (micron)	Max Width（mm）
Mesh	Inches	mm	Norminal (micron)	Max Width（mm）
48×10	0.0200×0.0200	0.500×0.500	350-450	1300
72×15	0.0200×0.0200	0.500×0.500	250-350	1300
132×16	0.0140×0.0180	0.352×0.457	210-260	1300
132×17	0.0140×0.0179	0.355×0.455	180-220	1300
152×24	0.0120×0.0140	0.315×0.350	115-130	1300
260×40	0.0059×0.0086	0.150×0.220	80-95	1300
325×39	0.0059×0.0120	0.150×0.300	45-75	1300
345×45	0.0055×0.0090	0.140×0.230	40-65	1300
400×120	0.0026×0.0040	0.065×0.100	60-70	1300
