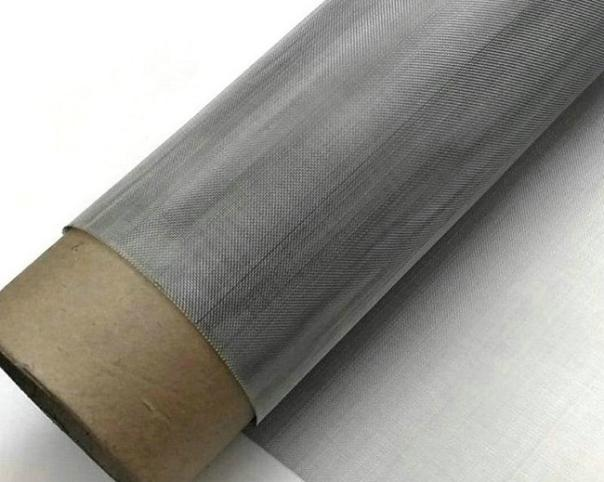

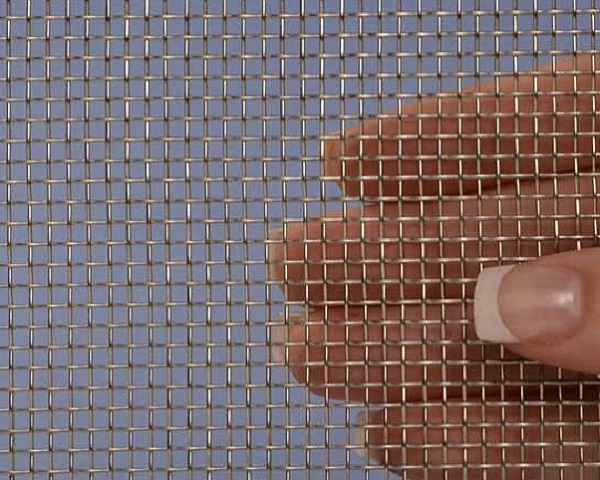

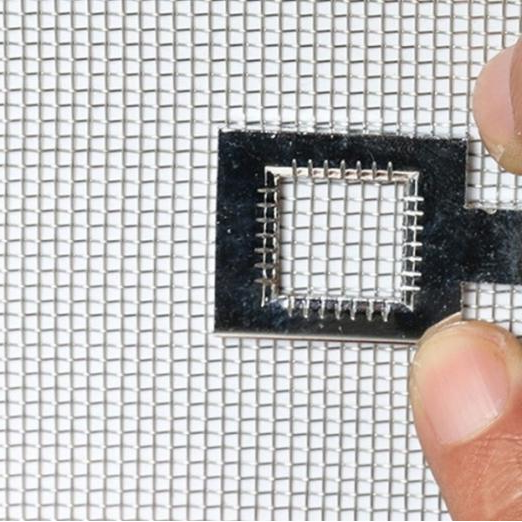

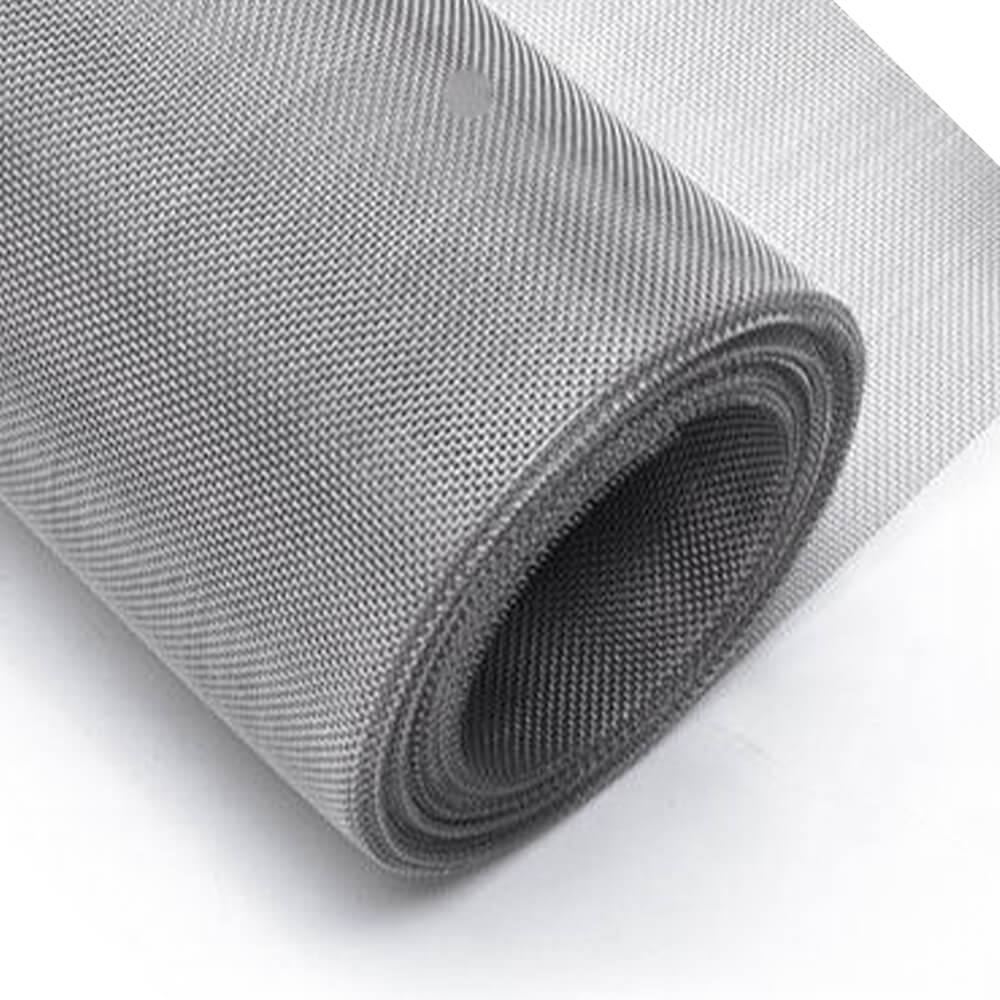

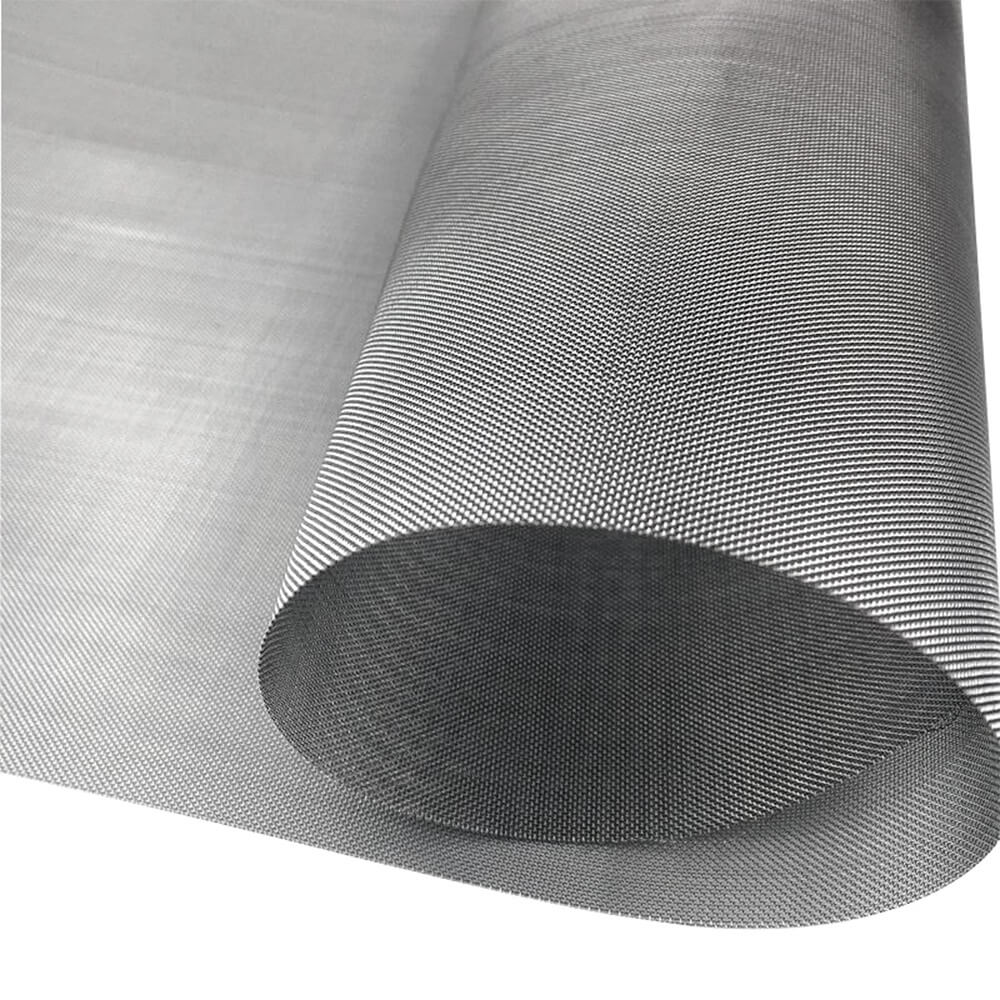

Duplex Stainless Steel Wire Mesh

Duplex stainless steel wire mesh is a woven wire mesh where 2205 | 2507 warp and weft (woof/filling) wires are interlaced at right angles.

Availability:

Product Description

Usage: Heat exchanger, Pressure vessels etc.

Material: 2101,2205,2507, Zeron 100, LDX 2101

Woven style: Plain and Twill Weave

Mesh :3-500Mesh

Diameter: 0.025mm-2.2mm

Roll Width: 0.1-1.5m

Roll Length: 10-100m

Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case

What is duplex stainless steel wire mesh?

Duplex stainless steel wire mesh is a woven wire mesh where 2205 | 2507 warp and weft (woof / filling) wires are interlaced at right angles. In other words, each warp wire and each weft wire pass over one, two or other amounts of wires, and then under the next one, two or other amounts of wires.

For example, twill woven wire mesh is typically the mesh where warp and weft wires pass over two, and then under the next two successive wires in both directions.

In addition, two distinct sets of wires are straight and at right angles to each other.

Features

Excellent resistance to crevice corrosion, pitting, stress related corrosion cracking

Excellent resistance to erosion and corrosion fatigue

High durability and resistance to chloride stress corrosion cracking

Increased thermal conductivity

Higher energy absorption

Excellent resistance to sulfide stress corrosion

Has reduced thermal expansion while having increase heat conductivity versus austenitic steels

Excellent weld and workability

Industrial Applications

Cargo tanks for piping and welding consumables used for chemical tankers

Desalination plants pipes and heat exchangers

Gas and oil tube and pipes, heat exchangers

Usage for pressure vessels for transports of chemicals

Usage on rotors, fans, or other equipment that has high corrosion where the fatigue strength can be used

Main Specification of the Iron Epoxy Coated Mesh
Mesh Inch	S.W.G	Aperture(mm)	Wire Diameter(mm)	Weight(Kg/m2)	Effective (%)
3mesh	14	6.27	2.2	62	7
3mesh	18	7.25	1.219	70	2.5
3.5mesh	20	6.34	0.914	66	1.8
4mesh	16	4.72	1.63	58	5
4mesh	20	5.45	0.914	76	2.1
4.5mesh	22	4.93	0.711	71	1.2
5mesh	18	3.86	1.22	57	3.6
5mesh	22	4.36	0.711	76	1.3
6mesh	18	3.04	1.22	50	4.3
6mesh	22	3.52	0.711	63	1.6
8mesh	20	2.26	0.91	43	3.2
8mesh	24	2.5	0.559	67	1.5
10mesh	20	1.63	0.91	41	4
10mesh	26	2.08	0.46	67	1.1
12mesh	22	1.41	0.71	43	2.9
12mesh	26	1.74	0.457	68	1.4
14mesh	26	1.36	0.46	57	1.4
16mesh	28	1.21	0.376	55	1.2
18mesh	30	1.1	0.315	60	0.85
20mesh	30	0.95	0.315	58	0.95
22mesh	32	0.88	0.274	57	0.8
24mesh	32	0.78	0.274	55	0.85
26mesh	32	0.74	0.274	51	0.7
28mesh	34	0.67	0.234	50	0.75
30mesh	34	0.61	0.234	48	0.8
32mesh	34	0.56	0.234	50	0.84
36mesh	34	0.47	0.234	45	0.95
38mesh	36	0.48	0.193	46	0.7
40mesh	36	0.44	0.193	50	0.8
50mesh	38	0.36	0.152	46	0.58
60mesh	40	0.3	0.122	50	0.45
80mesh	40	0.198	0.12	44	0.58
100mesh	42	0.154	0.1	37	0.5
120mesh	44	0.13	0.081	40	0.39
130mesh	45	0.125	0.07	41	0.325
140mesh	45	0.111	0.07	38	0.35
150mesh	46.5	0.115	0.055	48	0.206
160mesh	46	0.097	0.61	32	0.3
170mesh	47	0.09	0.05	41	0.213
180mesh	47	0.09	0.051	410	0.24
190mesh	47	0.083	0.051	40	0.24
200mesh	48	0.086	0.041	46	0.17
220mesh	48	0.074	0.041	41	0.19
240mesh	48	0.065	0.041	39	0.2
250mesh	48	0.061	0.041	38	0.22
260mesh	48	0.057	0.041	34	0.22
280mesh	49	0.06	0.031	31	0.14
300mesh	49	0.054	0.031	40	0.15
320mesh	49	0.048	0.031	39	0.16
350mesh	49	0.042	0.031	36	0.16
400mesh	50	0.0385	0.025	39	0.013
450mesh	50	0.0314	0.025	37	0.14
500mesh	50	0.0258	0.025	35	0.156

Precision-Driven Manufacturing

At Milesen, we combine advanced automated weaving systems to ensure every mesh delivers exact geometry, structural integrity, and repeatable quality. This precision allows us to meet demanding industrial and architectural standards with confidence.

Tailored Solutions for Every Application

No two projects are the same. That’s why we offer flexible customization across materials, weave patterns, aperture sizes, and mesh densities. Whether your application involves filtration, protection, or design, we engineer solutions that align precisely with your technical requirements.

Cost Efficiency Without Compromise

By leveraging an optimized production system and a strong global supply chain, Milesen delivers high-performance wire mesh at a significant cost advantage—typically 20–30% lower than imported alternatives. Standard orders are completed in as little as 7 days, helping you stay on schedule and within budget.

Engineering Support That Goes Further

Our support doesn’t end at delivery. From load analysis and product selection to installation guidance and long-term maintenance advice, our engineering team works alongside you at every stage to ensure reliable, long-term performance.

A Trusted Name in Wire Mesh Manufacturing

Milesen Metal Mesh has earned its reputation as a reliable partner for clients worldwide. Our products are widely used in industrial filtration systems, safety reinforcement, architectural facades, and electromagnetic shielding applications—where durability and consistency matter most.

Let's Build Something Stronger Together

Choose Milesen Metal Mesh for solutions that combine innovation, strength, and precision. We don’t just manufacture wire mesh—we help you achieve better performance in every project.
