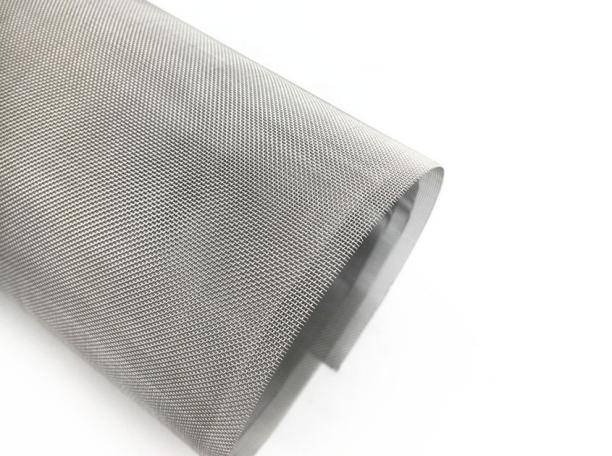

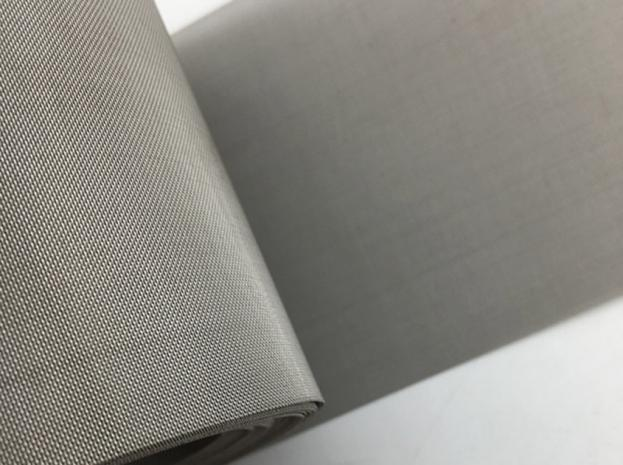

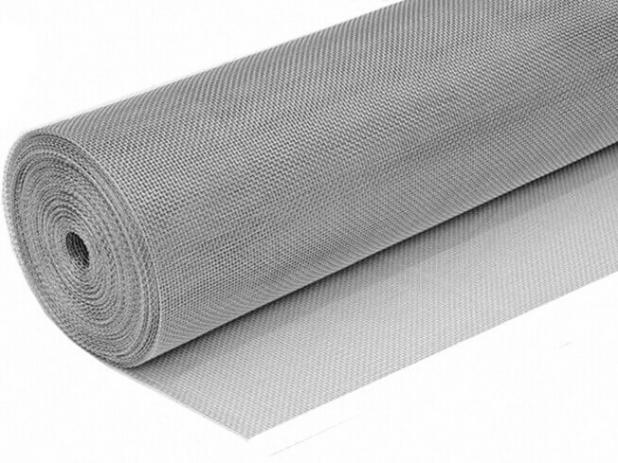

Nichrome Wire Mesh

The Nichrome V, also known as “Nichrome 80-20” is a combination of nickel and chromium alloy materials and is ideal for applications on resistors that are on high operating temperatures due to its resistance to high electrical and low temperature coefficient.

Availability:



Inquire

Product Description

Nichrome is the alloy of nickel and chrome. According to different chemical composition, nichrome can be divided into Cr20Ni80, Cr15Ni60 and Cr20Ni35.

Nichrome woven wire mesh is made of the nichrome wire, which is woven into regular meshes. Nichrome woven wire mesh has outstanding ductility, high tensile strength, oxidation resistance, sulfur resistance and other features.

Equipped with so many features, nichrome woven wire mesh has a wide range of applications, including the aerospace, shipbuilding, military industry, chemical and other fields.

Usage: Resistor Elements

Woven style: Plain and Twill Weave

Mesh : 2-325Mesh

Diameter: 0.05mm-2.0mm

Features:

Good ductility.

High tensile strength.

Oxidation resistance.

Sulfur resistance.

Permeability resistance.

Superior elongation.

Non-magnetic.

Applications

Nichrome woven wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.

Main Specification of the Nichrome Wire Mesh (NiCr wire mesh)
Mesh/Inch	Wire Gauge(SWG)	Aperture(mm)
3	14	6.27
4	16	4.27
5	18	3.86
6	18	3.86
8	20	2.26
10	20	1.63
20	30	0.95
30	34	0.61
40	36	0.44
50	38	0.36
60	40	0.30
80	42	0.21
100	44	0.172
200	47	0.076
325	48	0.037
