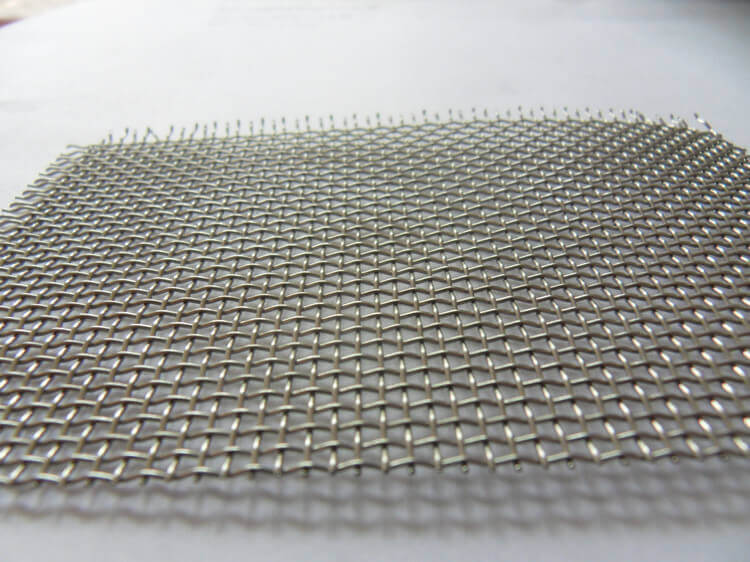

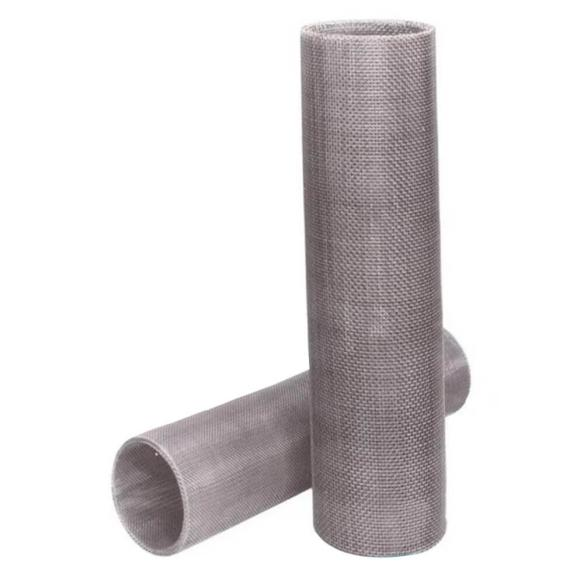

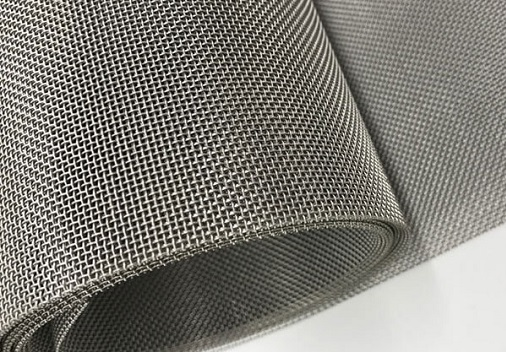

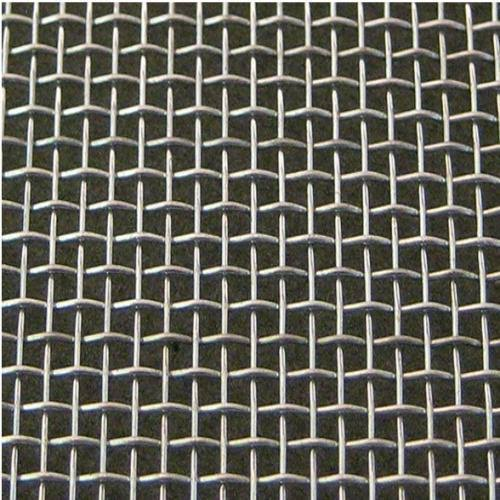

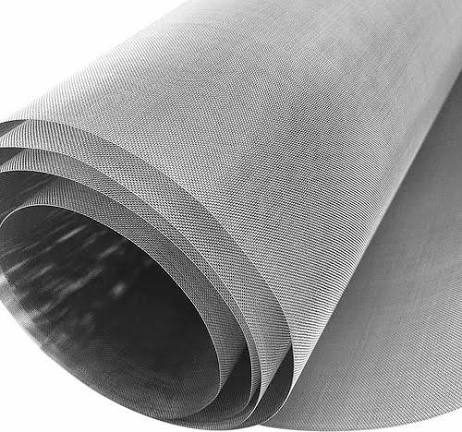

Monel Wire Mesh

Monel is the alloy of nickel, copper and other chemical elements. According to different chemical elements, the monel woven wire mesh has Monel alloy 400 and monel alloy K500 materials.

Availability:



Inquire

Product Description

The monel wire mesh is one of the most versatile and widely used nickel alloys.

Alloy 400 has outstanding corrosion resistance property in the flowing sea water. It can also resist to stress corrosion cracking. Alloy 400 is the most widely used monel material.

Alloy K500 also has outstanding corrosion resistance property like the Monel alloy 400, but the Monel alloy K500 has been added aluminum, which can let the monel K500 offer greater tensile strength and hardness than the Monel alloy 400.

The wire mesh is a combination of nickel and copper allowing for a higher strength material than unalloyed nickel. It does not compromise ductility and can resist corrosion brought about by exposure to wet environments such as brines, water and chemicals such as sulfur and hydrofluoric.

Compared to the common Stainless Steel Wire Mesh, The Monel wire mesh has a high melting point of 1300 F to 1350 F and strength superior to unalloyed nickel. Due to this unique quality, it is being used inside high-temperature vessels and petroleum applications.

Usage: Heating Equipment, Oil and Marine Field

Material: Monel 400, Monel 401, Monel 404, MonelR 405, Monel K-500.

Woven style: Plain and Twill Weave

Mesh : 2-200Mesh

Diameter: 0.05mm-1.8mm

Roll Width: 0.1m-1.5m

Roll Length: 10-100m

Applications of Monel Wire Mesh:

Monel wire mesh is widely used in the following industries:

Industrial heat exchangers

Chemical and solvent industries

Deaerating heaters (To remove oxygen and other dissolved gases from boiler feed water)

Hydrocarbon processing equipment

Distillation of petroleum crude

Marine, oceanic, and aerospace engineering

Fittings and fasteners of Valves, pumps, shafts, etc.

Fresh water and fuel tanks, boiler feedwater heaters

Main Specifications of the Monel Wire Mesh
Mesh	Wire Dia. (mm)	Aperture (mm)
2	1.80	10.90
3	1.60	6.866
4	1.20	5.15
5	0.91	4.17
6	0.80	3.433
8	0.60	2.575
10	0.55	1.990
12	0.50	1.616
14	0.45	1.362
16	0.40	1.188
18	0.35	1.060
20	0.30	0.970
26	0.28	0.696
30	0.25	0.596
40	0.21	0.425
50	0.19	0.318
60	0.15	0.273
70	0.14	0.223
80	0.12	0.198
90	0.11	0.172
100	0.10	0.154
120	0.08	0.132
140	0.07	0.111
150	0.065	0.104
160	0.065	0.094
180	0.053	0.088
200	0.053	0.074
