Hastelloy Wire Mesh

A combination of nickel, molybdenum and chromium alloy, Hastelloy is an excellent metal that is resistant to corrosion, pitting, crevice and oxidation processes. To maintain its resistance to corrosion, the low carbon content helps lower the carbide precipitation during the welding process. The nickel on the other hand helps with the formation of grain boundary precipitation.

Availability:



Inquire

Product Description

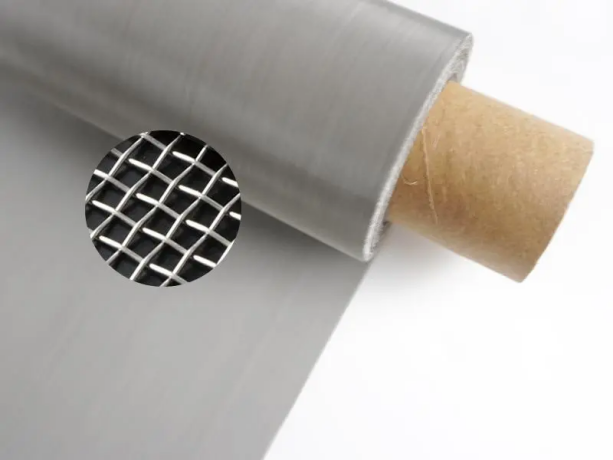

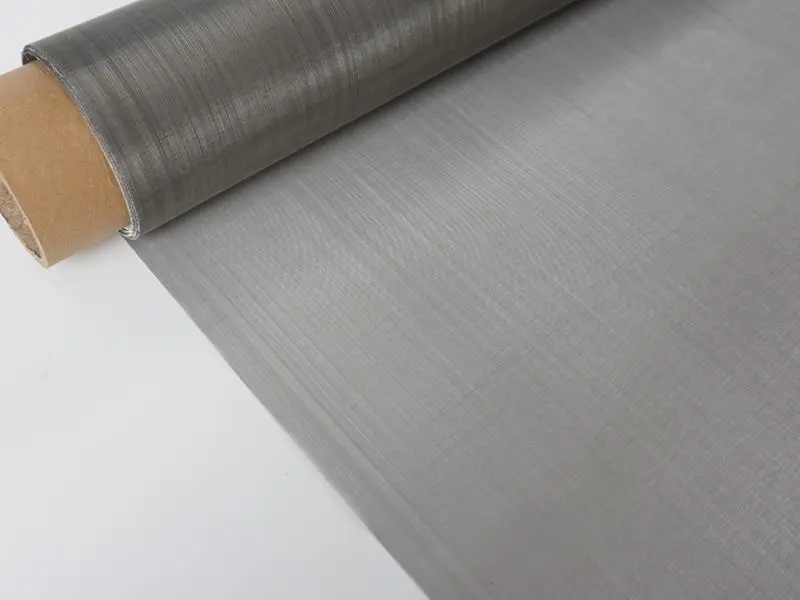

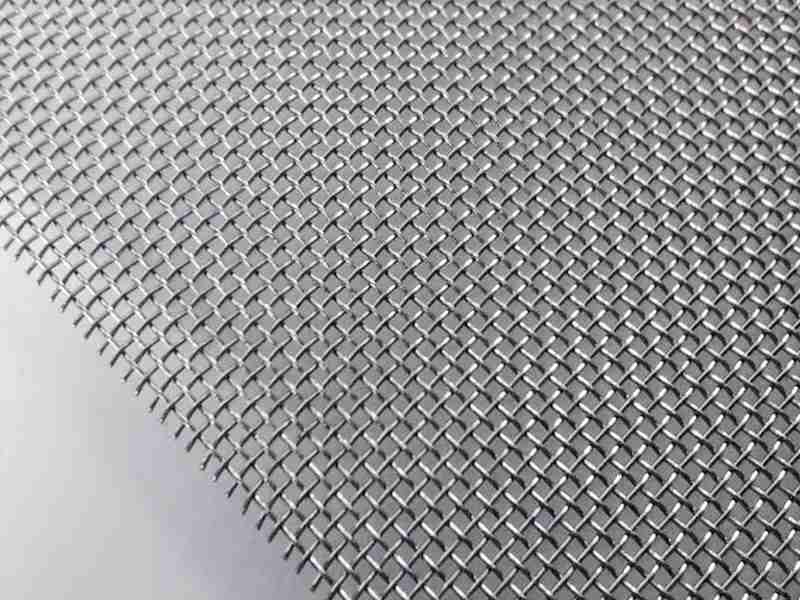

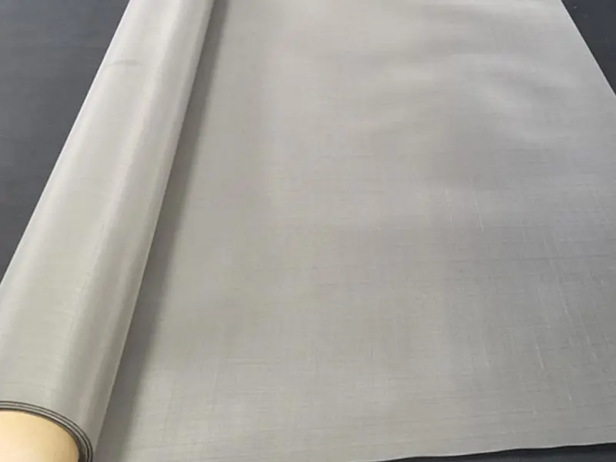

Hastelloy woven wire mesh is another nickel-based alloy woven wire mesh except for the monel woven wire mesh and nichrome woven wire mesh. The hastelloy is the alloy of nickel, molybdenum and chromium. According to the different chemical composition of material, the hastelloy can be divided into hastelloy B, Hastelloy C22, Hastelloy C276 and Hastelloy X.

Hastelloy woven wire mesh is the best corrosion resistant material among all of the metal materials. It is corrosion resistant in the acid, oxidizing, salt and other corrosion environments.

Hastelloy B standard woven wire mesh is the most widely used type in all types of hastelloy materials. It is resistant to hydrochloric acid at all concentrations, temperature and condition. That is, the hastelloy woven wire cloth can work well in high temperature even in the boiling point. It can also play a good performance in the hydrogen chloride gas. The Hastelloy B-3 is more excellent than the B-2, because it is less cracking and has higher chemical stability.

Features：

Corrosion resistance.

Acid and alkali resistance.

High temperature resistance.

Salty resistance.

Chemical stability.

Outstanding filtering performance.

Applications：

The Hastelloy woven wire mesh has best corrosion resistance in acid, alkali, salty and other corrosive environments. It has various applications.

Drugs manufacturing.

Cellophane preparation.

Chlorination devices.

Pesticide processing.

Incineration scrubber apparatus.

Main Specifications of the Hastelloy wire mesh
Mesh	Wire Diameter(mm)	Aperture(mm)
2	1.80	10.90
3	1.60	6.866
4	1.20	5.15
5	0.91	4.17
6	0.80	3.433
8	0.60	2.575
10	0.55	1.990
12	0.50	1.616
14	0.45	1.362
16	0.40	1.188
18	0.35	1.060
20	0.30	0.970
26	0.28	0.696
30	0.25	0.596
40	0.21	0.425
50	0.19	0.318
60	0.15	0.273
70	0.14	0.223
80	0.12	0.198
90	0.11	0.172
100	0.10	0.154
120	0.08	0.132
140	0.07	0.111
150	0.065	0.104
160	0.065	0.094
180	0.053	0.088
200	0.053	0.074
